신재생에너지용

PCS for PV, Wind, Hydro, Tidal Power

  • OVP: AC/DC Converter, Dump Load
  • DC/AC Inverter : Grid Tie, Transformer
  • PLL, Islanding, MPPT, PF optimal design
  • Advanced Power Converter
  • Safety System: Emergency braking

Hydro/Wind

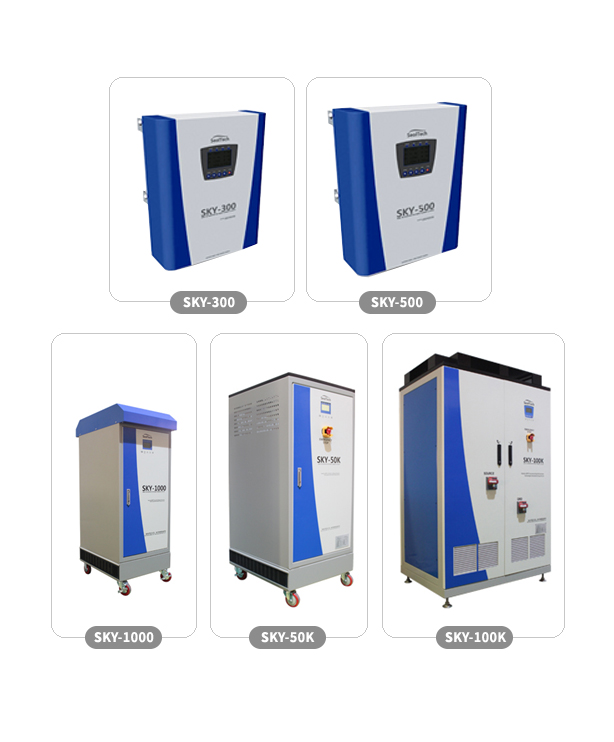

MODEL SKY-300, 500 SKY-1000 SKY-50K SKY-100K
Rated Power 3kW, 5kW 10kW 50kW 100kW
Phase Single 3 3 3
Frequency 60Hz / 50Hz
(+-0.5Hz)		 60Hz / 50Hz
(+-0.5Hz)		 60Hz / 50Hz
(+-0.5Hz)		 60Hz / 50Hz
(+-0.5Hz)
Voltage AC 220V (+10%/-12%) AC220V / AC 380V
(+10%/-12%)		 AC380V / AC 480V
(+10%/-12%)		 AC 380V / 480V
(+10%/-12%)
Control MPPT, PWM MPPT, PWM MPPT, PWM MPPT, PWM
Operating Voltage 200V ~ 500V DC 200V ~ 500V DC 300V ~ 600V DC 400V ~ 800V DC


PV

MODEL SKY-300S SKY-100K
Rated Power 3kW 100kW
Phase Single 3
Frequency 60Hz 60Hz
Voltage AC 220V (+10%/-12%) AC 380V (+10%/-12%)
Control MPPT, PWM MPPT, PWM
Operating Voltage 200V ~ 550V DC 300V ~ 600V DC

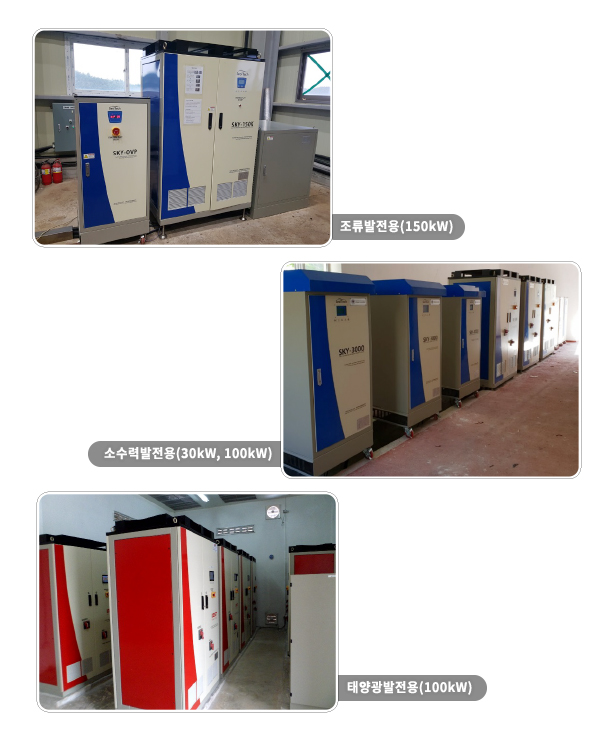

설치사진
